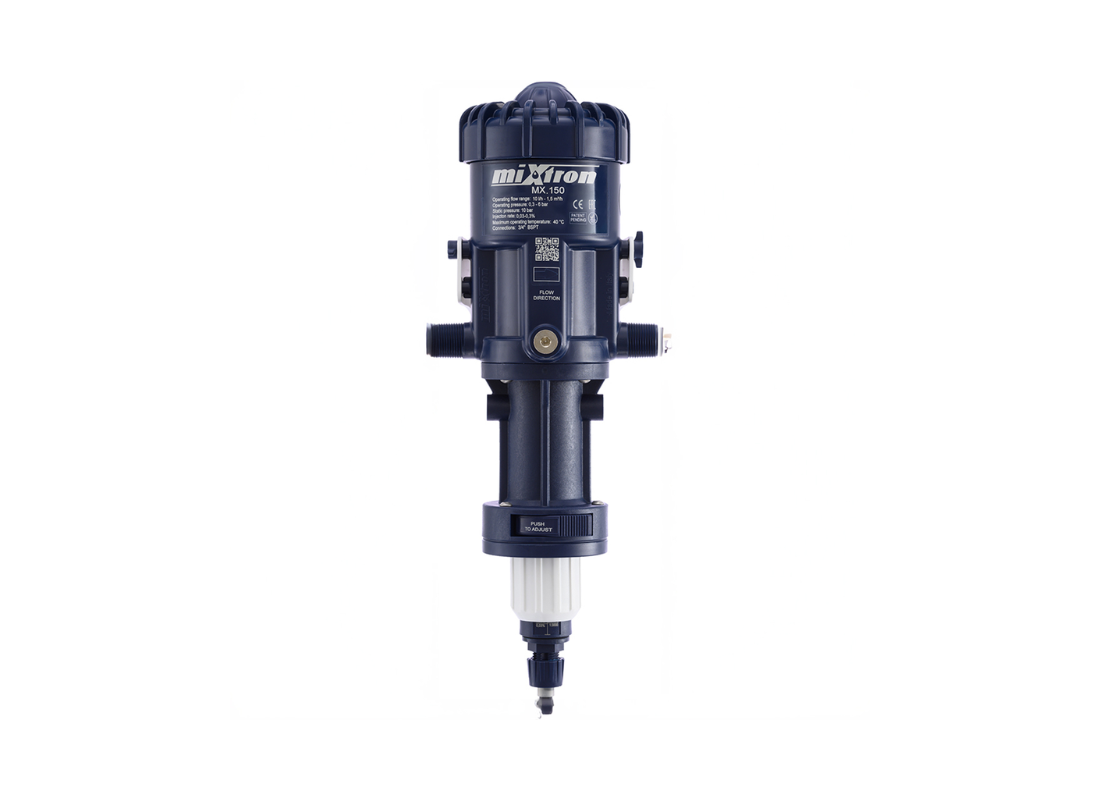

Mixtron MX150.P003-VFX 0.03–0.3% Water Powered Dosing Pump

Water-powered dosing pump, 0.03–0.3% dosing ratio, up to 1,500 l/hr flow, PVDF internal components, no electricity required

The Mixtron MX150-VFX is a water-powered dosing pump designed for precise low-concentration chemical injection without the need for electrical power. Operating using water flow as its driving force, it provides a reliable and efficient solution for consistent dosing in industrial and water treatment applications.

With an adjustable dosing ratio from 0.03% to 0.3% (1:3000 to 1:350), this model is ideal for applications requiring very low concentration dosing with high accuracy. It supports a maximum water flow rate of up to 1,500 L/h, ensuring stable and consistent performance across varying operating conditions.

The pump features enhanced chemical resistance with PVDF components, making it suitable for more aggressive chemical applications. Combined with VF Viton (Acidic) seals, it offers excellent compatibility with acidic solutions and ensures long-term durability.

Constructed from high-quality materials including POM, PP, PVDF, HDPE, and PA12, along with AISI 316 and Duplex stainless steel components, the MX150-VFX delivers reliable performance with minimal maintenance. It maintains dosing accuracy of ±5% and repeatability of ±3% for consistent chemical injection.

Key Features

• Water-powered operation (no electricity required)

• Adjustable dosing ratio: 0.03% – 0.3%

• Max flow rate: 1,500 L/h

• PVDF components for enhanced chemical resistance

• VF Viton (Acidic) seals for acidic compatibility

• Accurate proportional dosing (±5% accuracy)

• Compact and durable design

• 3/4” BSPT connection

Applications

• Water treatment systems

• Chemical dosing and injection

• Cleaning and sanitation

• Agriculture & fertigation

• Car wash systems

• Industrial processing

Technical Specifications

• Model: MX150-VFX

• Dosing Ratio: 0.03% – 0.3% (1:3000 – 1:350)

• Max Flow Rate: 1,500 L/hr

• Min Flow Rate: 10 L/hr

• Operating Pressure: 0.3 – 6 Bar

• Max Static Pressure: 10 Bar

• Operating Temperature: 5 – 40°C

• Seal Material: VF Viton (Acidic)

• Plastic Materials: POM, PP, PVDF, HDPE, PA12

• Metal Components: AISI 316, Duplex

• Connection Size: 3/4” BSPT
