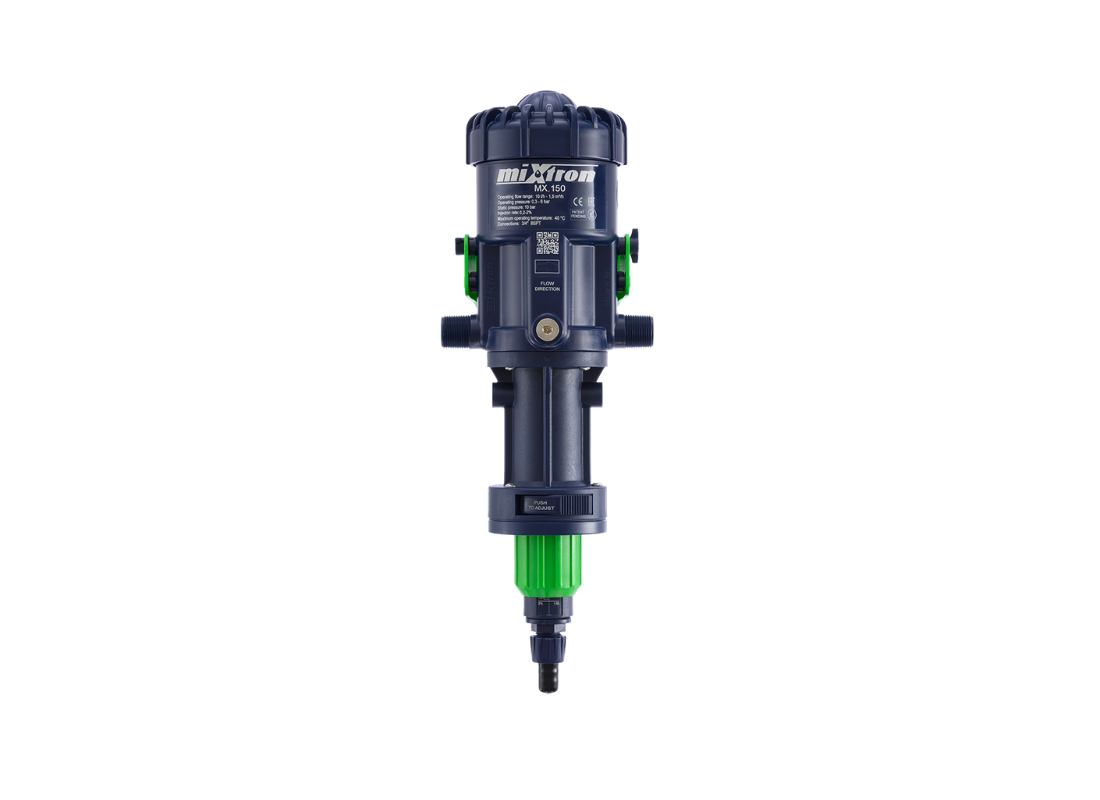

Mixtron MX150.P022-VFX 0.2–2% Water Powered Dosing Pump

Water-powered dosing pump, 0.2–2% dosing ratio, up to 1,500 l/hr flow, PVDF internal components, no electricity required

The Mixtron MX150-VFX is a water-powered dosing pump designed for precise proportional chemical injection without the need for electrical power. Using water flow as its driving force, it provides a reliable and efficient dosing solution for industrial, agricultural, and water treatment applications.

With an adjustable dosing ratio from 0.2% to 2% (1:500 to 1:50), this model is ideal for medium concentration chemical dosing. It supports a maximum water flow rate of up to 1,500 L/h, ensuring stable and consistent performance across varying system conditions.

This VFX variant features enhanced chemical resistance with PVDF components, making it suitable for more aggressive chemical applications. Combined with VF Viton (Acidic) seals, it ensures strong compatibility with acidic solutions and extended service life.

Manufactured from durable materials including POM, PP, PVDF, HDPE, and PA12, along with AISI 316 and Duplex stainless steel components, the pump delivers reliable performance with minimal maintenance. It maintains dosing accuracy of ±5% and repeatability of ±3% for consistent chemical injection.

Key Features

• Water-powered operation (no electricity required)

• Adjustable dosing ratio: 0.2% – 2%

• Max flow rate: 1,500 L/h

• PVDF components for enhanced chemical resistance

• VF Viton (Acidic) seals for acidic compatibility

• Accurate proportional dosing (±5% accuracy)

• Compact and durable design

• 3/4” BSPT connection

Applications

• Water treatment systems

• Chemical dosing and injection

• Cleaning and sanitation

• Agriculture & fertigation

• Car wash systems

• Industrial processing

Technical Specifications

• Model: MX150-VFX

• Dosing Ratio: 0.2% – 2% (1:500 – 1:50)

• Max Flow Rate: 1,500 L/hr

• Min Flow Rate: 10 L/hr

• Operating Pressure: 0.3 – 6 Bar

• Max Static Pressure: 10 Bar

• Operating Temperature: 5 – 40°C

• Seal Material: VF Viton (Acidic)

• Plastic Materials: POM, PP, PVDF, HDPE, PA12

• Metal Components: AISI 316, Duplex

• Connection Size: 3/4” BSPT
