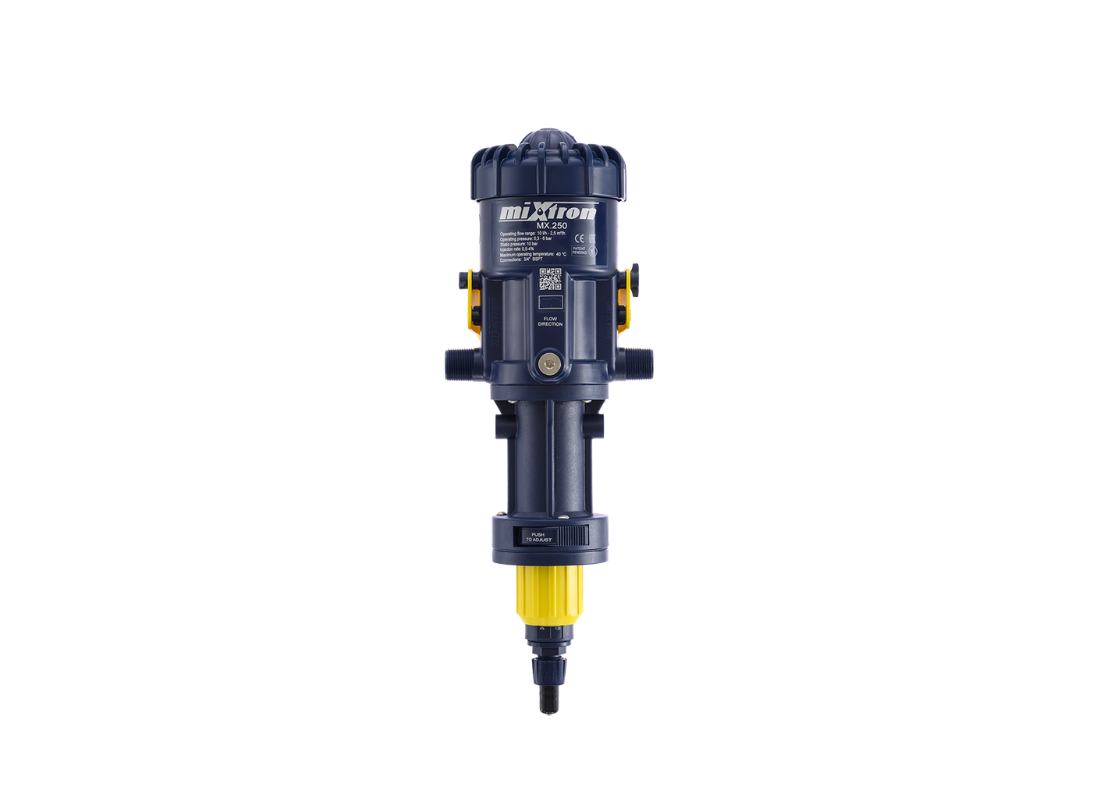

Mixtron MX250.P054-VF 0.5–4% Water Powered Dosing Pump

Water-powered dosing pump, 0.5–4% dosing ratio, up to 2,500 l/hr flow, high chemical resistance materials, no electricity required

The Mixtron MX250-VF is a water-powered dosing pump designed for accurate proportional chemical injection without the need for electrical power. Using water flow as its driving force, it delivers reliable and efficient dosing performance across industrial, agricultural, and water treatment applications.

With an adjustable dosing ratio from 0.5% to 4% (1:200 to 1:25), this model is ideal for medium to high concentration chemical dosing. It supports a maximum water flow rate of up to 2,500 L/h, ensuring stable and consistent performance in demanding environments.

Constructed from durable materials including POM, PP, HDPE, and PA12, along with AISI 316 and Duplex stainless steel components, the pump provides excellent resistance to chemicals and wear. The VF Viton (Acidic) seals ensure compatibility with acidic solutions, offering long-term durability and reliability.

Designed for consistent operation, the MX250-VF delivers dosing accuracy of ±5% and repeatability of ±3%, ensuring precise and dependable chemical injection with minimal maintenance.

Key Features

• Water-powered operation (no electricity required)

• Adjustable dosing ratio: 0.5% – 4%

• Max flow rate: 2,500 L/h

• VF Viton (Acidic) seals for acidic compatibility

• High chemical resistance materials (POM, PP, HDPE, PA12)

• Accurate proportional dosing (±5% accuracy)

• Compact and durable design

• 3/4” BSPT connection

Applications

• Water treatment systems

• Acid dosing applications

• Cleaning and sanitation

• Agriculture & fertigation

• Car wash systems

• Industrial processing

Technical Specifications

• Model: MX250-VF

• Dosing Ratio: 0.5% – 4% (1:200 – 1:25)

• Max Flow Rate: 2,500 L/hr

• Min Flow Rate: 10 L/hr

• Operating Pressure: 0.3 – 6 Bar

• Max Static Pressure: 10 Bar

• Operating Temperature: 5 – 40°C

• Seal Material: VF Viton (Acidic)

• Plastic Materials: POM, PP, HDPE, PA12

• Metal Components: AISI 316, Duplex

• Connection Size: 3/4” BSPT
