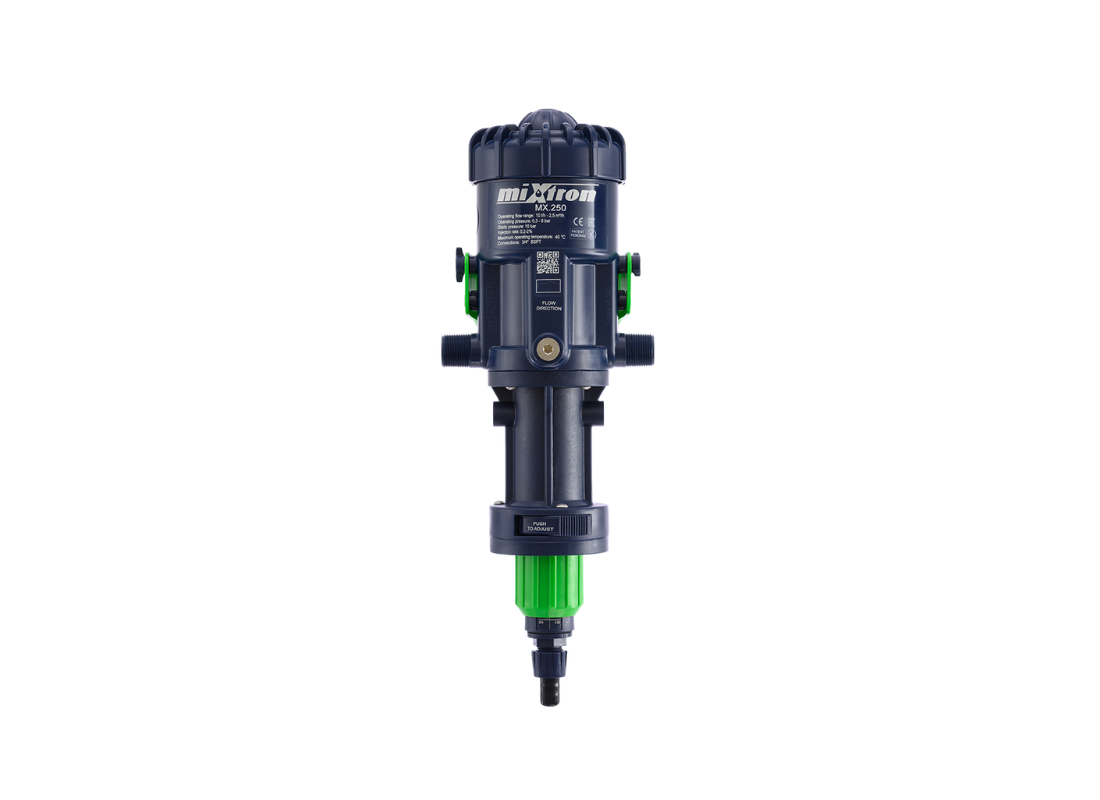

Mixtron MX250.P022-VFX 0.2–2% Water Powered Dosing Pump

Water-powered dosing pump, 0.2–2% dosing ratio, up to 2,500 l/hr flow, PVDF internal components, no electricity required

The Mixtron MX250-VFX is a water-powered dosing pump designed for accurate proportional chemical injection without the need for electrical power. Using water flow as its driving force, it delivers reliable and efficient dosing performance across industrial, agricultural, and water treatment applications.

With an adjustable dosing ratio from 0.2% to 2% (1:500 to 1:50), this model is ideal for medium concentration chemical dosing. It supports a maximum water flow rate of up to 2,500 L/h, ensuring stable and consistent performance in demanding environments.

This VFX variant features enhanced chemical resistance with PVDF components, making it suitable for more aggressive chemical applications. Combined with VF Viton (Acidic) seals, it ensures excellent compatibility with acidic solutions and long-term durability.

Constructed from high-quality materials including POM, PP, PVDF, HDPE, and PA12, along with AISI 316 and Duplex stainless steel components, the pump offers excellent resistance to wear and chemical exposure. It delivers dosing accuracy of ±5% and repeatability of ±3%, ensuring consistent and precise chemical injection.

Key Features

• Water-powered operation (no electricity required)

• Adjustable dosing ratio: 0.2% – 2%

• Max flow rate: 2,500 L/h

• PVDF components for enhanced chemical resistance

• VF Viton (Acidic) seals for acidic compatibility

• Accurate proportional dosing (±5% accuracy)

• Compact and durable design

• 3/4” BSPT connection

Applications

• Water treatment systems

• Chemical dosing and injection

• Cleaning and sanitation

• Agriculture & fertigation

• Car wash systems

• Industrial processing

Technical Specifications

• Model: MX250-VFX

• Dosing Ratio: 0.2% – 2% (1:500 – 1:50)

• Max Flow Rate: 2,500 L/hr

• Min Flow Rate: 10 L/hr

• Operating Pressure: 0.3 – 6 Bar

• Max Static Pressure: 10 Bar

• Operating Temperature: 5 – 40°C

• Seal Material: VF Viton (Acidic)

• Plastic Materials: POM, PP, PVDF, HDPE, PA12

• Metal Components: AISI 316, Duplex

• Connection Size: 3/4” BSPT
