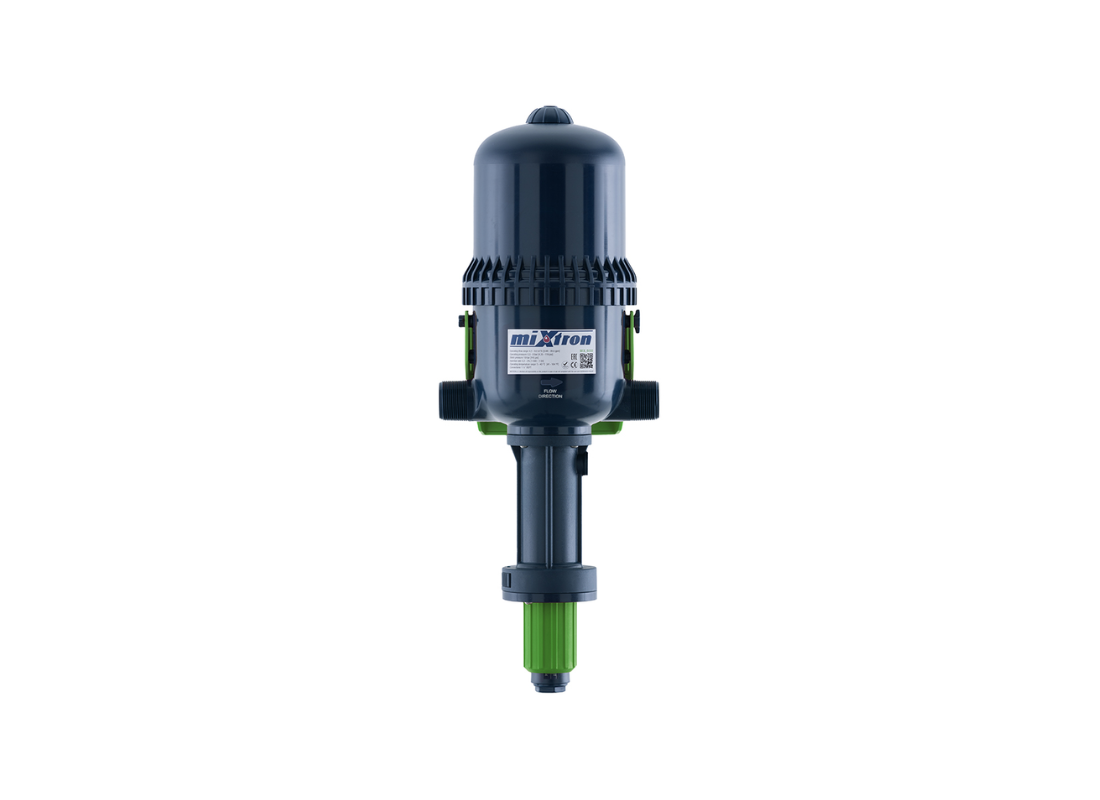

Mixtron MX900.P022-VF 0.2–2% Water Powered Dosing Pump

Water-powered dosing pump, 0.2–2% dosing ratio, up to 9,000 l/hr flow, high chemical resistance materials, no electricity required

The Mixtron MX900-VF is a high-capacity water-powered dosing pump designed for accurate proportional chemical injection without the need for electrical power. Using water flow as its driving force, it delivers reliable and efficient dosing performance for large-scale industrial, agricultural, and water treatment applications.

With an adjustable dosing ratio from 0.2% to 2% (1:500 to 1:50), this model is ideal for medium concentration chemical dosing. It supports a maximum water flow rate of up to 9,000 L/h, ensuring stable and consistent performance in high-demand environments.

Constructed from durable materials including POM, PP, HDPE, and PA12, along with AISI 316 and Duplex stainless steel components, the pump offers excellent resistance to chemicals and wear. The VF Viton (Acidic) seals ensure compatibility with acidic solutions, providing long-term durability and reliability.

Designed for precision and consistency, the MX900-VF delivers dosing accuracy of ±5% and repeatability of ±3%, ensuring dependable chemical injection with minimal maintenance.

Key Features

• Water-powered operation (no electricity required)

• Adjustable dosing ratio: 0.2% – 2%

• Max flow rate: 9,000 L/h

• VF Viton (Acidic) seals for acidic compatibility

• High chemical resistance materials (POM, PP, HDPE, PA12)

• Accurate proportional dosing (±5% accuracy)

• Heavy-duty industrial design

• 1 1/2” BSPT connection

Applications

• Water treatment systems

• Industrial chemical dosing

• Agriculture & fertigation

• Car wash systems

• Cleaning and sanitation

• Process industries

Technical Specifications

• Model: MX900-VF

• Dosing Ratio: 0.2% – 2% (1:500 – 1:50)

• Max Flow Rate: 9,000 L/hr

• Min Flow Rate: 100 L/hr

• Operating Pressure: 0.3 – 8 Bar

• Max Static Pressure: 10 Bar

• Operating Temperature: 5 – 40°C

• Seal Material: VF Viton (Acidic)

• Plastic Materials: POM, PP, HDPE, PA12

• Metal Components: AISI 316, Duplex

• Connection Size: 1 1/2” BSPT
