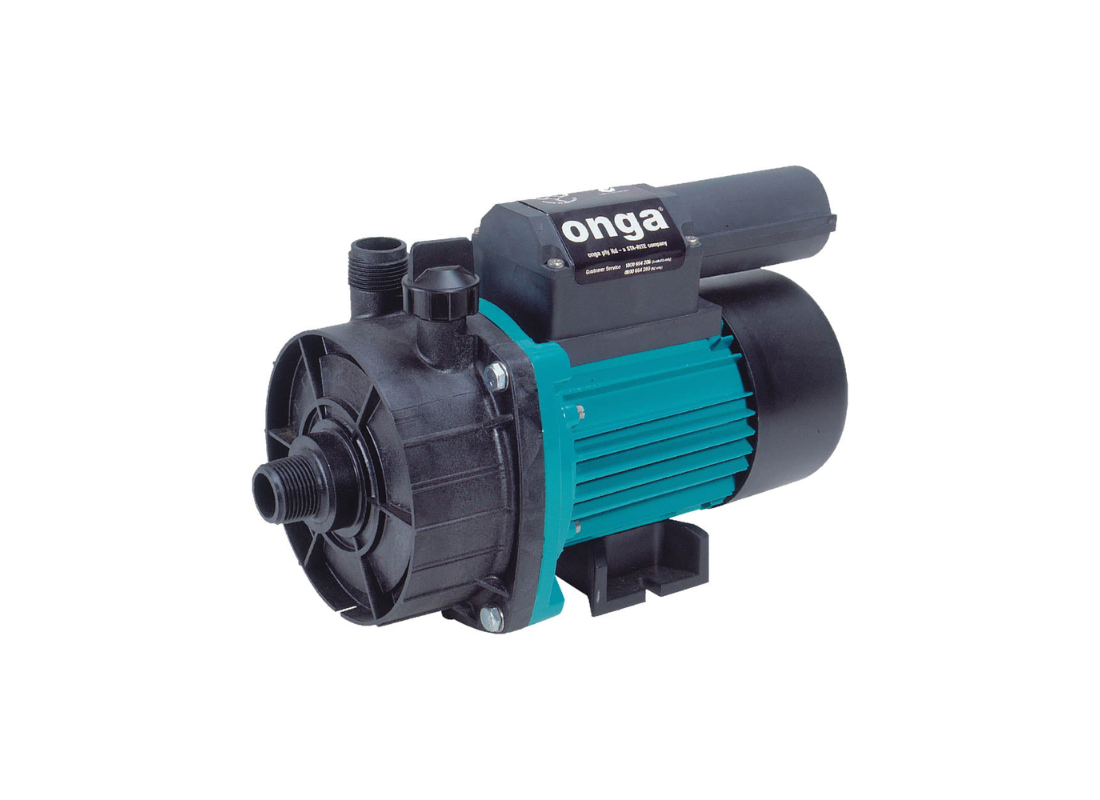

Onga 414 High Flow Corrosion-Resistant Centrifugal Chemical Transfer Pump

High flow centrifugal transfer pump, corrosion-resistant construction, enhanced flow capacity, reliable performance for fluid transfer

The Onga 414 Centrifugal Pump is a high-efficiency water transfer pump designed for reliable movement of clean liquids in domestic, agricultural, and industrial applications. Built with high-grade corrosion-resistant materials, it ensures long-lasting durability even in demanding environments.

Featuring an advanced high-flow impeller, the pump delivers superior flow performance compared to standard models, making it ideal for applications requiring higher discharge capacity. Its single-stage centrifugal design ensures smooth, stable, and efficient operation.

The pump is equipped with a totally enclosed fan-cooled (TEFC) motor and built-in thermal overload protection, safeguarding the unit from overheating and ensuring consistent performance. Its compact, surface-mounted design allows for easy installation and maintenance.

Suitable for pumping clean, non-aggressive liquids without solids or fibres, the Onga 414 is widely used in water transfer, irrigation, hydroponics, and general fluid handling systems.

Key Features

• High flow centrifugal pump design

• Corrosion-resistant construction materials

• Enhanced high-performance impeller

• Single-stage surface-mounted configuration

• Built-in thermal overload protection

• Totally enclosed fan-cooled (TEFC) motor

• Reliable and low-maintenance operation

• Compact and easy to install

Applications

• Water transfer systems

• Agriculture and irrigation

• Hydroponics and nutrient delivery

• Tank filling and hose down

• Industrial fluid transfer

• Garden watering and sprinkler systems

Technical Specifications

• Model: 414
• Pump Type: Centrifugal (Single Stage)
• Power Supply: 230V, 1 Phase, 50 Hz
• Motor Power: 0.55 kW (P1) / 0.375 kW (P2)
• Speed: 2900 RPM
• Current: 2.5 A
• Maximum Flow Rate: Up to 198 L/min
• Maximum Head: Up to 26 m
• Maximum Working Pressure: 410 kPa
• Maximum Liquid Temperature: 70°C

• Minimum Liquid Temperature: 1°C
• Maximum Ambient Temperature: 55°C
• Motor Protection: Automatic Thermal Overload
• Insulation Class: B

• Protection Rating: IPX5
• Inlet/Outlet: 1¼” BSP (Male)
• Construction Materials:

• Pump Casing: Glass-filled ABS

• Impeller: Glass-filled Polycarbonate

• Seal: Nitrile / Ceramic / Carbon

• Shaft Components: Stainless Steel / Mild Steel
