RMC Endurance Multijet 32mm Turbine Water Meter
RMC Endurance Multijet 32mm Turbine Water Meter - Oval Flange is backordered and will ship as soon as it is back in stock.
Description
Description
The RMC Endurance Multijet 32mm Turbine Water Meter is a robust cold-water meter designed for reliable internal and external water metering applications. Built with a durable gunmetal body, direct-drive multijet turbine mechanism and oval flange connections, this meter is designed to provide long-term accuracy, mechanical durability and resistance to magnetic interference.
The encapsulated reading face is housed in a protective silicon oil-filled chamber, helping prevent fogging and discolouration caused by trapped particulate in the water supply. The meter also includes an internal non-return valve and strainer to help protect against dirt, debris and reverse flow.
This 32mm Endurance Multijet model is pulse capable with the optional WM598 reed switch and is suited to non-trade cold water applications where a durable and economical turbine meter is required. It must be installed horizontally with the flow direction matching the arrow cast into the meter body.

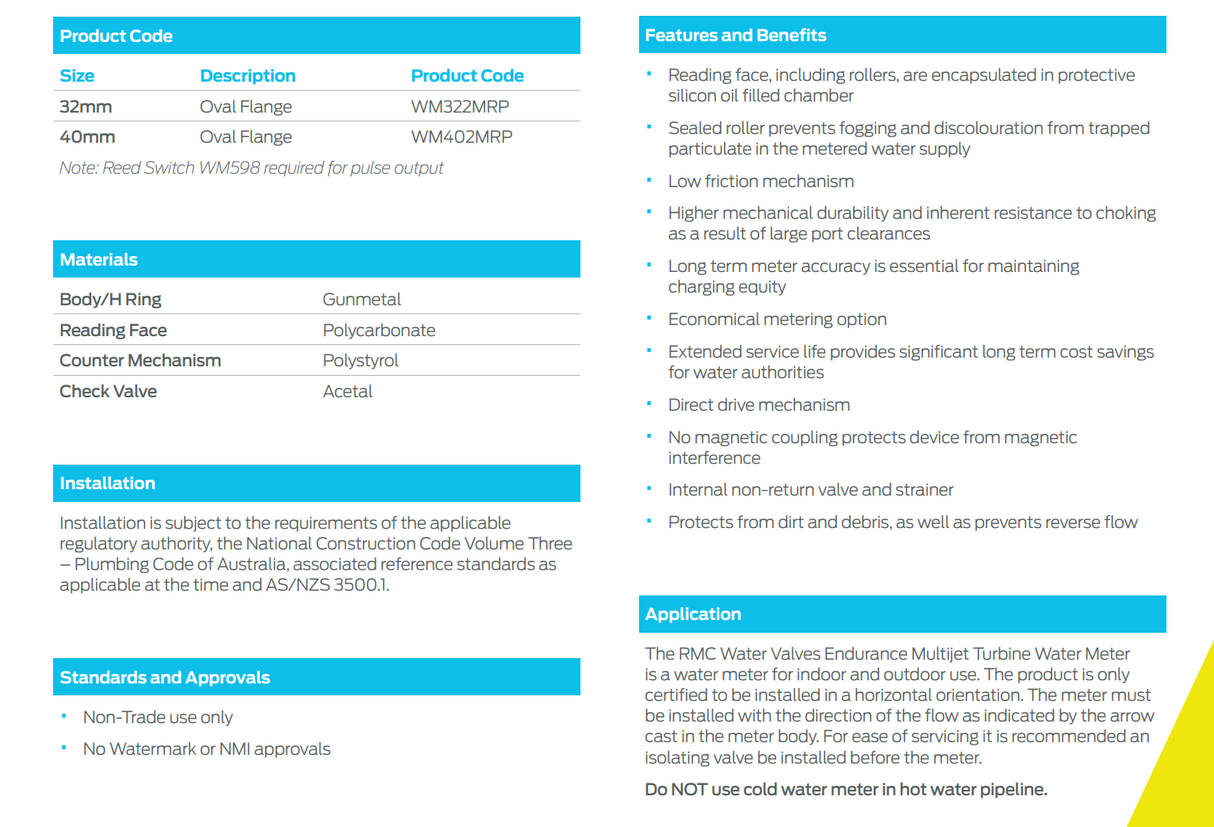

Key Features
- 32mm cold water multijet turbine meter
- Gunmetal body construction
- Oval flange connection
- Direct-drive mechanism with no magnetic coupling
- Encapsulated oil-filled reading chamber
- Helps reduce fogging and register discolouration
- Internal non-return valve and strainer
- Pulse capable with optional WM598 reed switch
- Suitable for internal and external use
- Horizontal installation only
- Non-trade use only

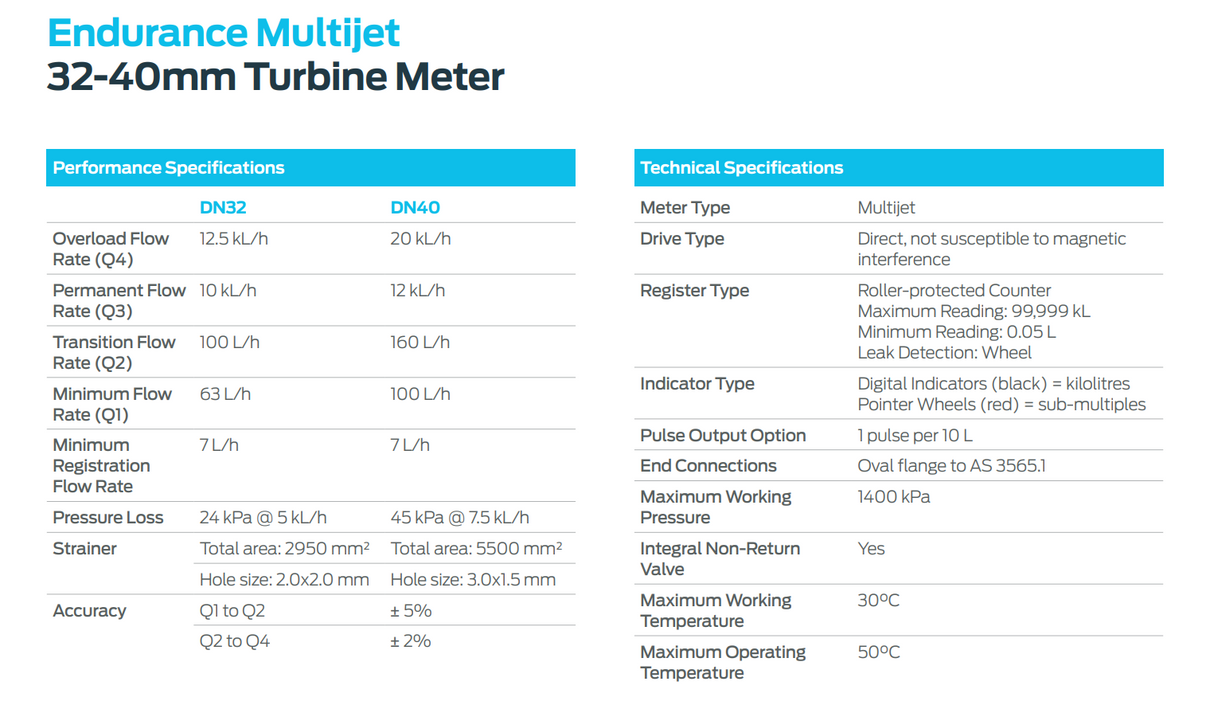

Specifications
| Specification | Details |
|---|---|
| Brand | RMC / Reliance |
| Series | Endurance Multijet |
| Size | 32mm |
| Meter Type | Multijet Turbine |
| Body Material | Gunmetal |
| Connection Type | Oval Flange |
| Application | Cold Water Only |
| Permanent Flow Rate Q3 | 10 kL/h |
| Overload Flow Rate Q4 | 12.5 kL/h |
| Minimum Flow Rate Q1 | 63 L/h |
| Transition Flow Rate Q2 | 100 L/h |
| Minimum Registration Flow | 7 L/h |
| Pressure Loss | 24 kPa @ 5 kL/h |
| Max Working Pressure | 1400 kPa |
| Max Working Temperature | 30°C |
| Max Operating Temperature | 50°C |
| Pulse Output Option | 1 pulse per 10L |
| Integral Non-Return Valve | Yes |
| Approval | Non-trade use only / No WaterMark or NMI approval |
