Description
Description

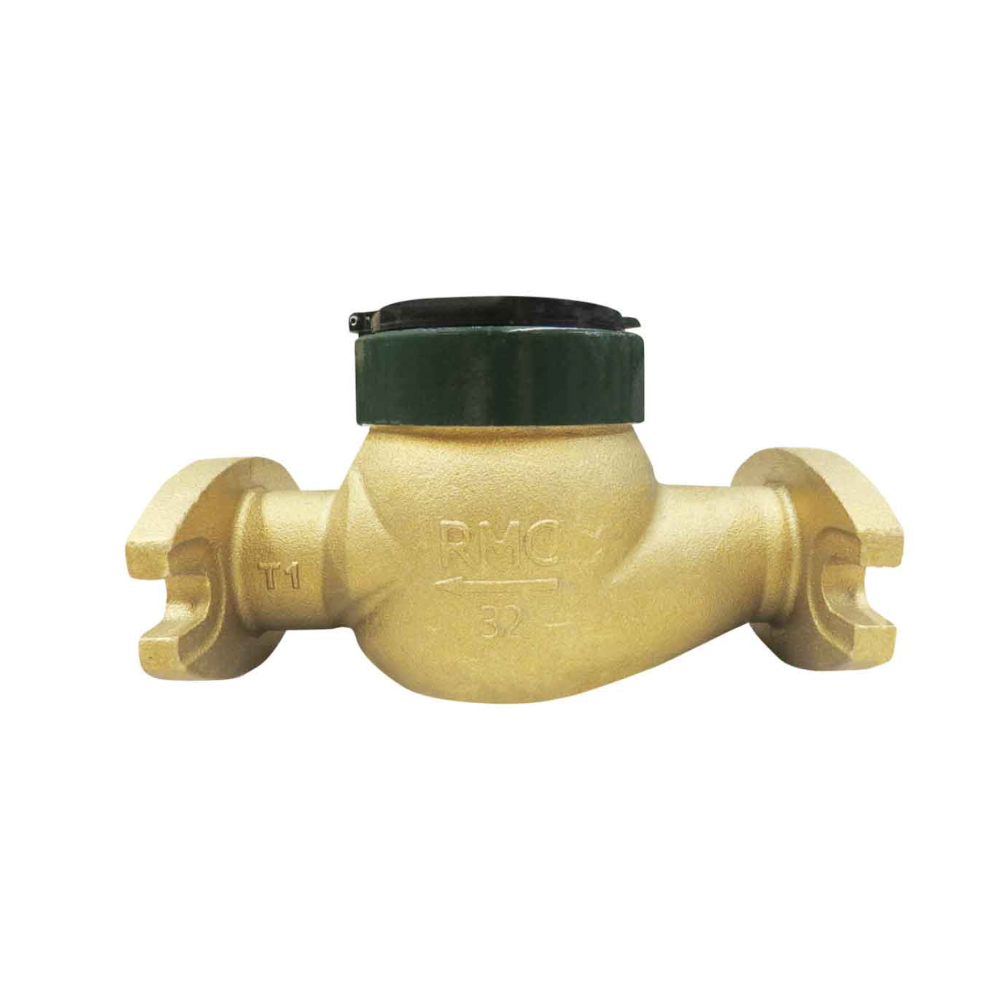

The RMC Endurance Multijet 40mm Turbine Water Meter is a durable cold-water meter designed for internal and external non-trade water metering applications. Built with a strong gunmetal body, direct-drive multijet turbine mechanism and oval flange connections, this meter is designed to provide reliable long-term accuracy, mechanical durability and resistance to magnetic interference.
The reading face and rollers are encapsulated in a protective silicon oil-filled chamber, helping reduce fogging and discolouration caused by trapped particulate in the metered water supply. The meter also includes an internal non-return valve and strainer to help protect against dirt, debris and reverse flow.
The 40mm Endurance Multijet model is pulse capable with the optional WM598 reed switch, making it suitable for remote reading where required. It is intended for cold water, non-trade use only and must be installed horizontally with the flow direction matching the arrow cast into the meter body.

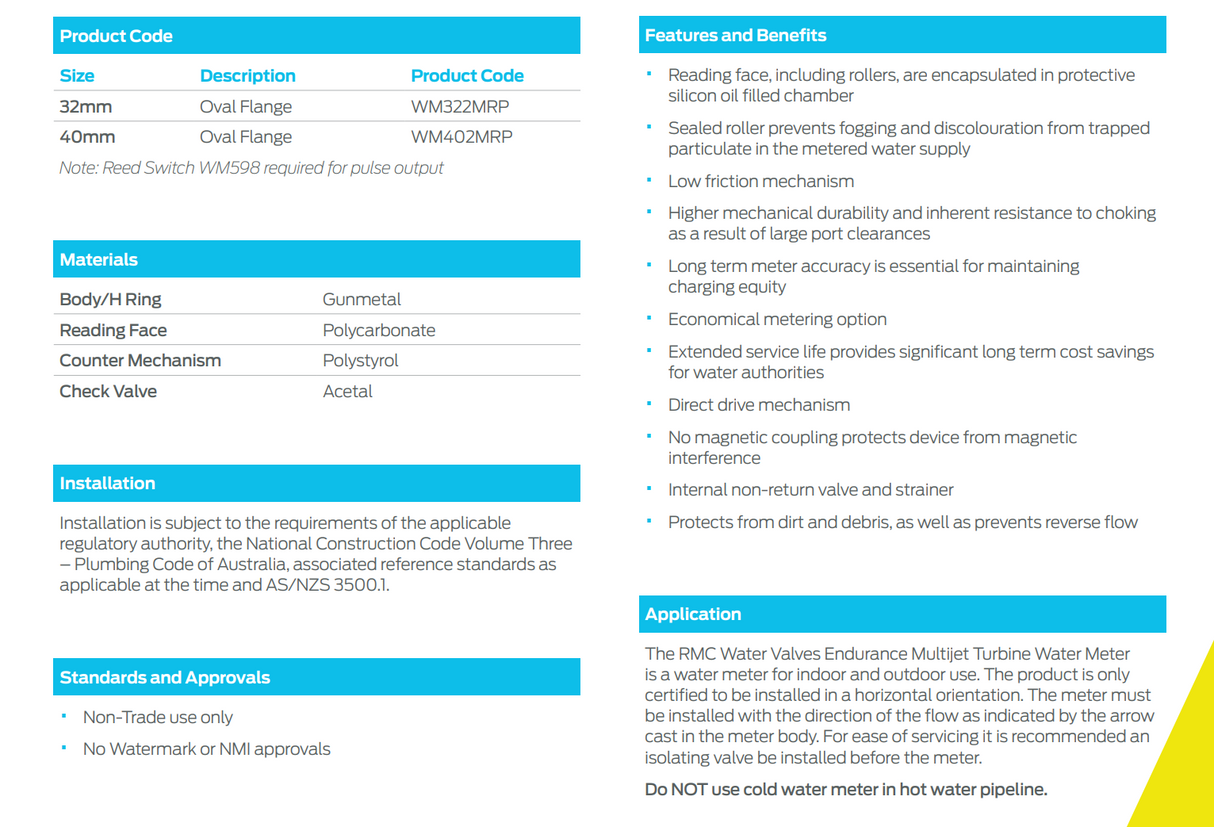

Key Features
- 40mm cold water multijet turbine meter
- Gunmetal body construction
- Oval flange connection
- Direct-drive mechanism with no magnetic coupling
- Encapsulated oil-filled reading chamber
- Helps reduce fogging and register discolouration
- Internal non-return valve and strainer
- Pulse capable with optional WM598 reed switch
- Suitable for indoor and outdoor use
- Horizontal installation only
- Non-trade use only

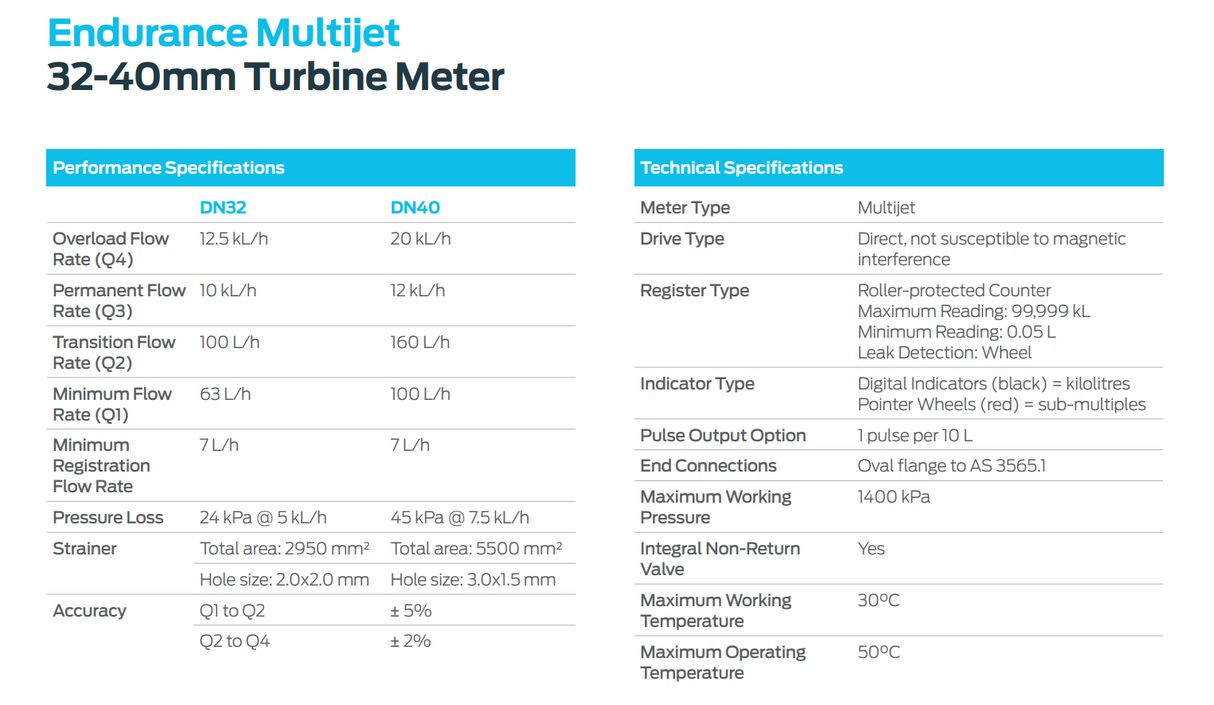

Specifications
| Specification | Details |
|---|---|
| Brand | RMC / Reliance |
| Series | Endurance Multijet |
| Size | 40mm |
| Meter Type | Multijet Turbine |
| Body Material | Gunmetal |
| Connection Type | Oval Flange |
| Application | Cold Water Only |
| Permanent Flow Rate Q3 | 12 kL/h |
| Overload Flow Rate Q4 | 20 kL/h |
| Minimum Flow Rate Q1 | 100 L/h |
| Transition Flow Rate Q2 | 160 L/h |
| Minimum Registration Flow | 7 L/h |
| Pressure Loss | 45 kPa @ 7.5 kL/h |
| Max Working Pressure | 1400 kPa |
| Max Working Temperature | 30°C |
| Max Operating Temperature | 50°C |
| Pulse Output Option | 1 pulse per 10L |
| Integral Non-Return Valve | Yes |
| Approval | Non-trade use only / No WaterMark or NMI approval |
