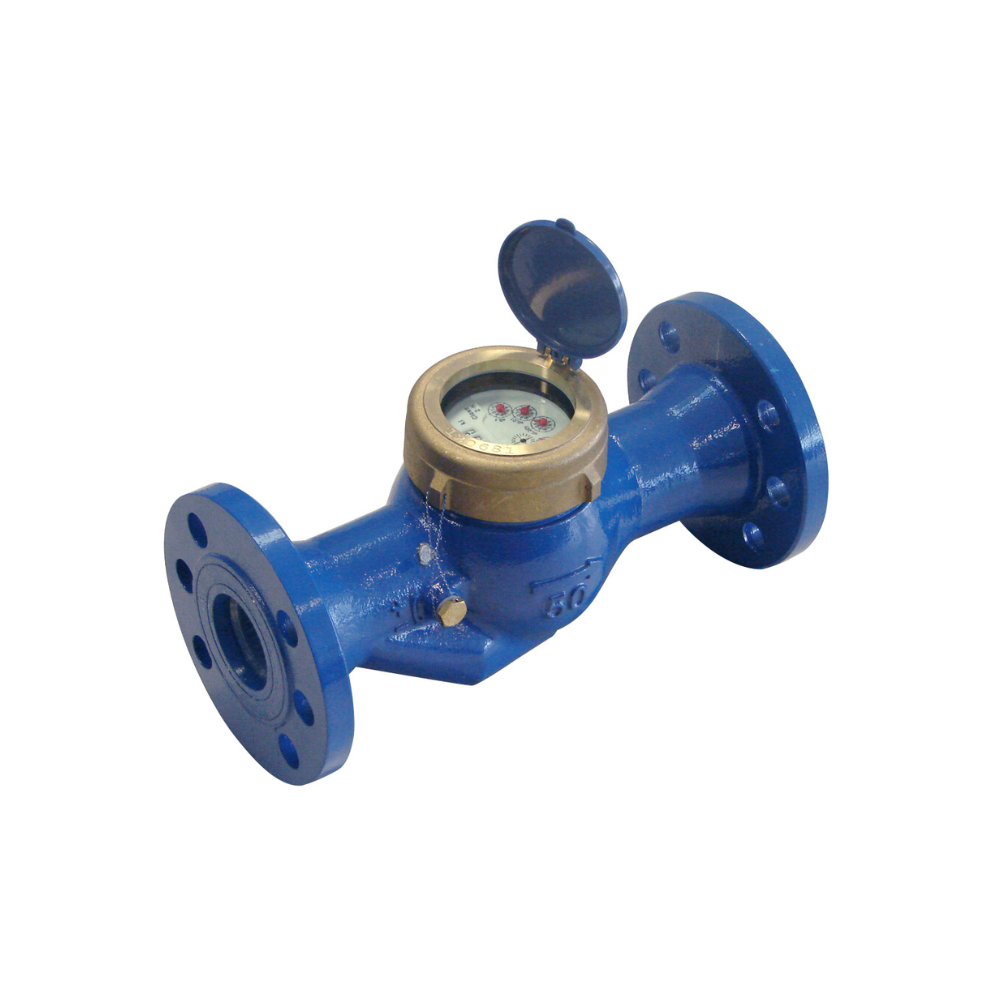

RMC Endurance Multijet 50mm Roller-Protected Turbine Water Meter

The RMC Endurance Multijet 50mm Roller-Protected Turbine Water Meter is a commercial-quality cold water meter designed for reliable internal and external water metering applications. Built with a durable brass body, direct-drive multijet mechanism and roller-protected counter, this meter is designed to support long-term accuracy, mechanical durability and extended service life.

The reading face and rollers are encapsulated in a protective silicon oil-filled chamber, helping prevent fogging and discolouration caused by trapped particulate in the water supply. The direct-drive, low-friction mechanism also removes the need for magnetic coupling, helping protect the meter from magnetic interference.

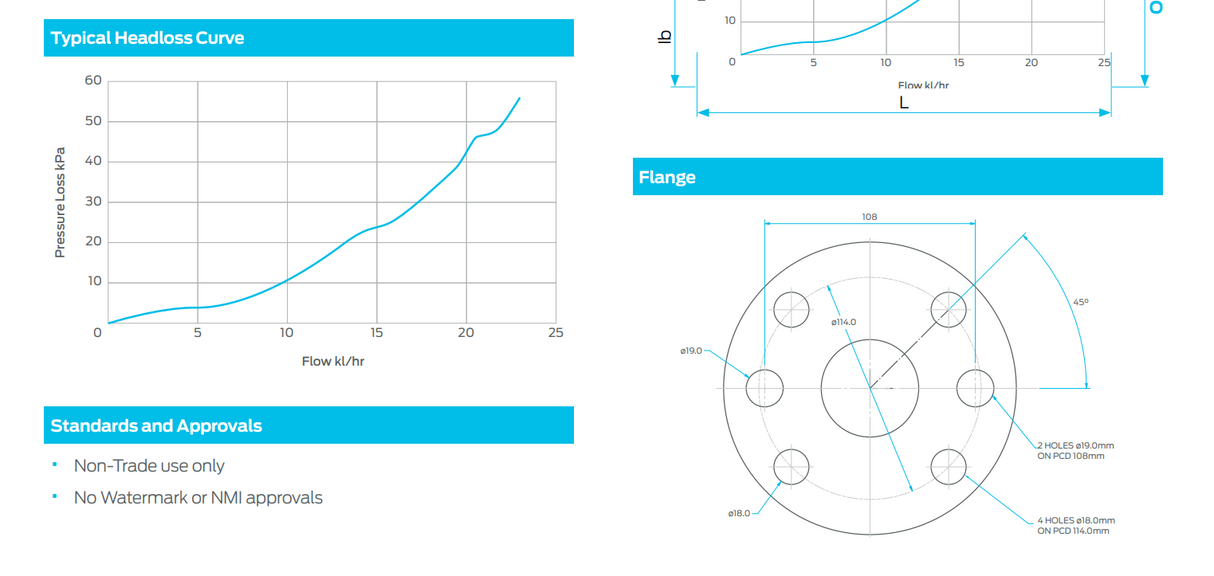

The WM514MRP model features a six-hole flange design, allowing it to be used in both standard round flange and oval flange installations. It is also pulse capable with the optional WM598 reed switch, making it suitable for remote reading applications where required. This meter is for cold water, non-trade use only and must be installed horizontally with the flow direction matching the arrow on the meter body.

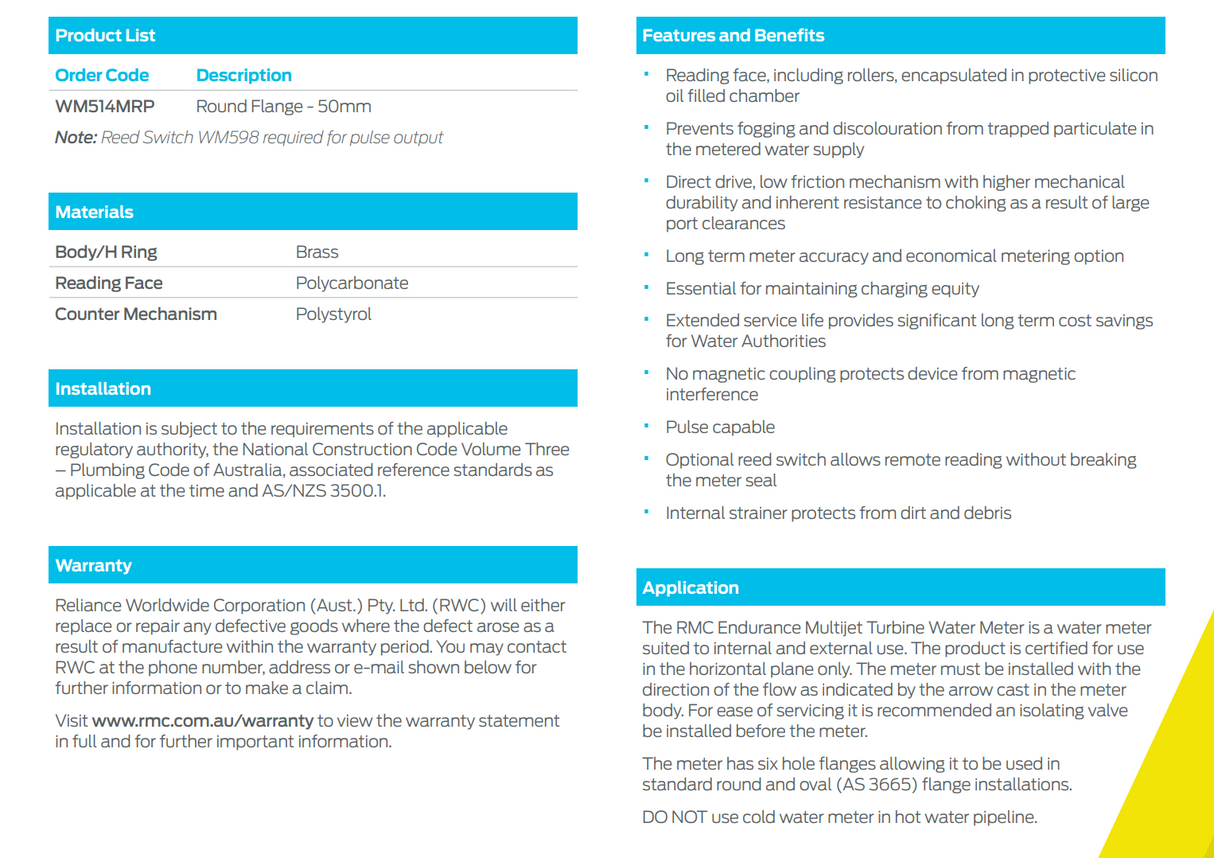

Key Features

• 50mm cold water roller-protected multijet meter

• Brass body construction

• Round and oval flange compatible

• Direct-drive, low-friction mechanism

• No magnetic coupling, helping protect against magnetic interference

• Encapsulated silicon oil-filled reading chamber

• Helps prevent fogging and register discolouration

• Internal strainer to protect from dirt and debris

• Pulse capable with optional WM598 reed switch

• Suitable for internal and external use

• Horizontal installation only

• Non-trade use only

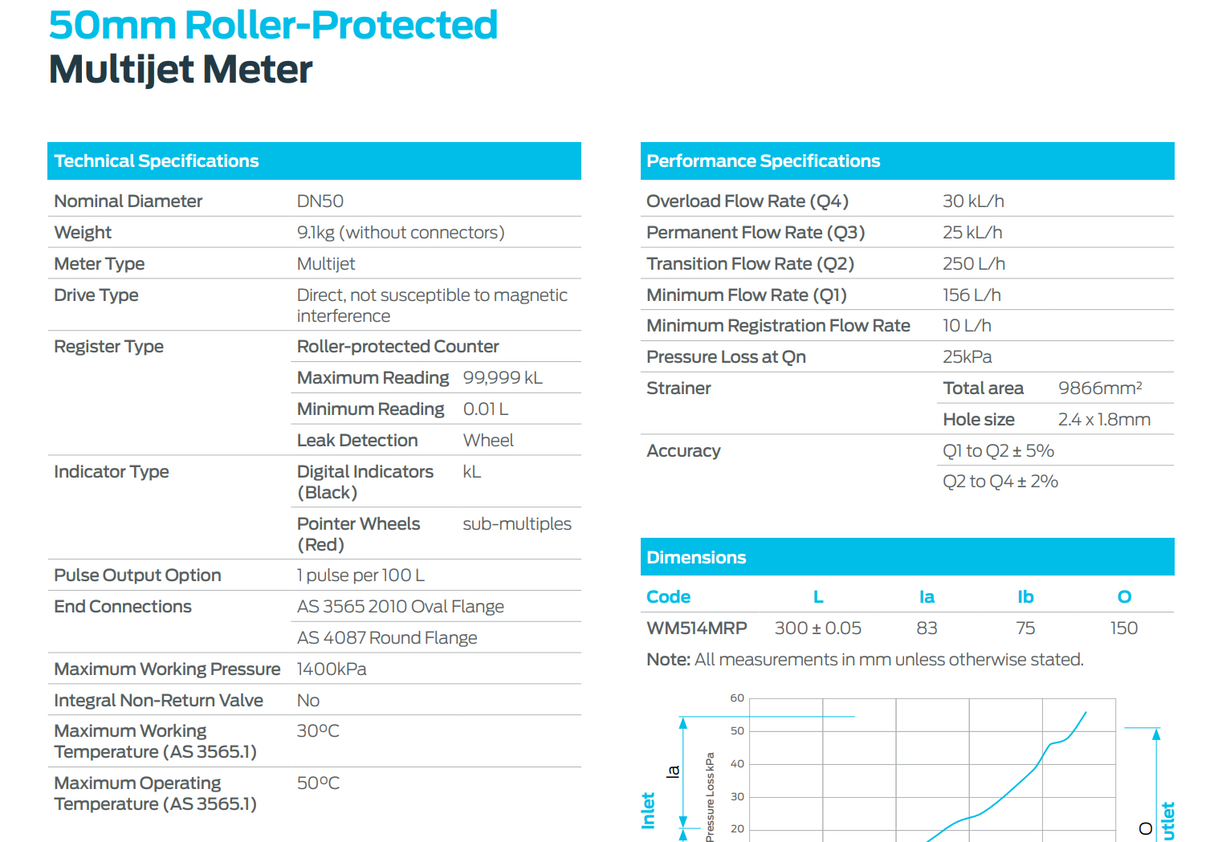

Specifications
