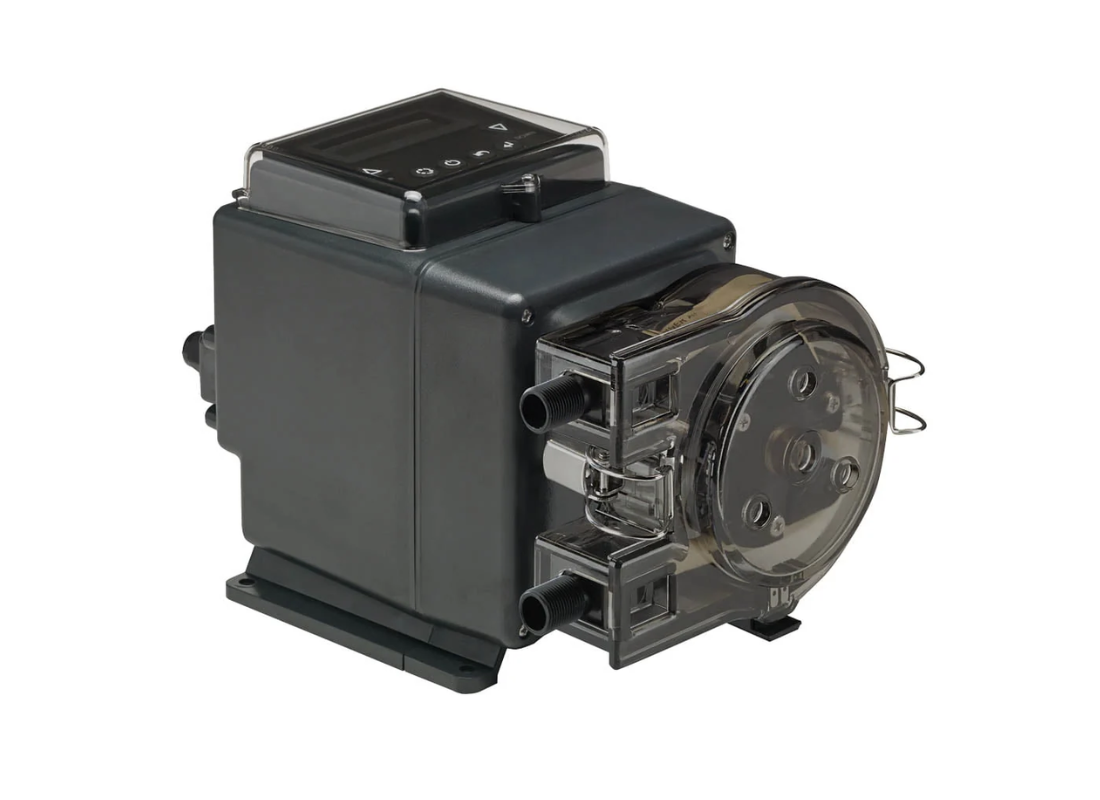

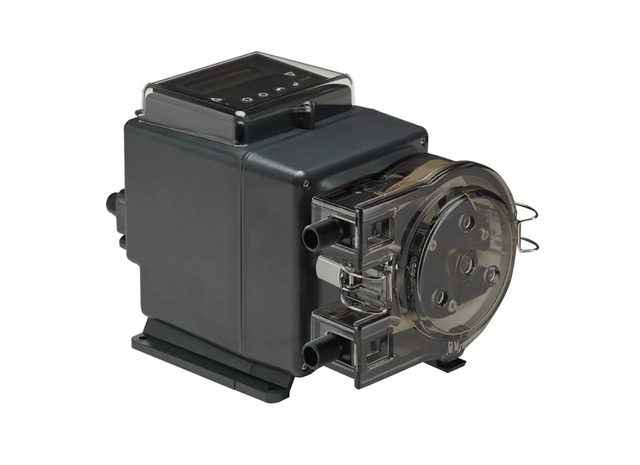

Stenner S407XDK4011 High-Pressure Multi-Function Digital Peristaltic Dosing Pump
Free Shipping
Australia Wide
30-Day Returns
Easy Returns
Tax Invoice
For Business Buyers
Expert Advice
1300 107 451
Product Overview
The Stenner S407XDK4011 is a high-pressure digital peristaltic dosing pump designed for accurate chemical injection in demanding water treatment, disinfection and industrial applications. Its digital keypad with OLED display supports multiple operating modes and provides a 100:1 turndown ratio, allowing the output to be adjusted from approximately 0.09 to 9.46 L/h.
The self-priming peristaltic design pumps off-gassing chemicals without losing prime or experiencing vapour lock. It can also run dry without damaging the pump, while its output remains unaffected by back pressure for dependable chemical dosing at pressures up to 6.9 bar.
A totally enclosed NEMA 4X housing supports indoor and outdoor installation, while the brushless DC motor, tube leak detector, tube change timer and tool-free pump tube replacement help simplify operation and maintenance.
Stenner item number: S407XDK4011
Stenner model: S407X
Key Features
- High-pressure digital peristaltic dosing pump
- Adjustable output from approximately 0.09 to 9.46 L/h
- Digital keypad with OLED display
- Multiple programmable operating modes
- 100:1 turndown ratio
- Maximum working pressure of 6.9 bar (100 psi)
- Self-priming against maximum working pressure
- Pumps off-gassing chemicals without vapour locking
- Can run dry without damaging the pump
- Output remains unaffected by back pressure
- Tube leak detector and tube change timer
- Password protection for secure operation
- Tool-free pump tube replacement
- Totally enclosed NEMA 4X housing
- Brushless DC continuous-duty motor
- Supplied with installation accessories
Applications
Frequently Asked Questions
What is the Stenner S407XDK4011 used for?
The Stenner S407XDK4011 is designed for high-pressure chemical injection in water treatment, disinfection and industrial dosing applications.
What is the maximum flow rate?
The pump delivers an adjustable flow rate from approximately 0.09 to 9.46 L/h.
How is the output controlled?
Output is controlled through a digital keypad with an OLED display and multiple programmable operating modes.
Can the pump run dry?
Yes. The peristaltic design allows the pump to run dry without causing damage.
Will the pump lose prime with off-gassing chemicals?
No. The pump handles off-gassing chemicals without losing prime or experiencing vapour lock.
What is the maximum working pressure?
The maximum working pressure is 6.9 bar (100 psi).
Is the pump self-priming?
Yes. The pump is self-priming against its maximum working pressure.
What safety and maintenance features are included?
The pump includes a tube leak detector, tube change timer and password protection.
What enclosure rating does the pump have?
The pump has a totally enclosed NEMA 4X housing suitable for indoor and outdoor installation.
What accessories are included?
The pump is supplied with connecting nuts, an injection ball check valve, weighted suction line strainer, suction/discharge tubing, an additional pump tube, mounting bracket and Quick Start Guide.
Downloads
Download product datasheets, manuals, and technical documents:
Product Reviews
See our product reviews here
Specifications
Maintenance Kits & Spare Parts
Compatible spare parts for this pump
Contact us for spare parts and maintenance kits.
