EMEC VCO 07-06-VF Adjustable Wall Mounted Electronic Chemical Dosing Pump
EMEC VCO 07-06-VF Adjustable Wall Mounted Electronic Chemical Dosing Pump is backordered and will ship as soon as it is back in stock.
Product Warranty
Product Warranty
EMEC dosing pumps and control instruments are covered by a 5-year manufacturer’s warranty from the date of purchase for manufacturing defects only. PRIUS pumps are covered by a 2-year manufacturer’s warranty.
To claim warranty, the product must be returned to the manufacturer, authorised distributor or nominated assessment location with proof of purchase. The unit will be inspected and repaired or replaced if a manufacturing defect is confirmed.
CONDITONS
- Product must be installed, operated and maintained as per manufacturer instructions.
- Product must be accessible for inspection, servicing or removal.
- Proof of purchase is required for all warranty claims.
- Warranty repairs or replacements do not extend the full original warranty period, except where required under the manufacturer’s warranty terms.
- Periodic maintenance is required to ensure correct operation.
NOT COVERED
- Incorrect installation, misuse or operation outside specifications
- Lack of maintenance or unauthorised servicing
- Damage caused by transport, external factors or environmental conditions
- Wear parts, removable parts or consumable components
- Damage caused by chemical incompatibility or incorrect chemical use
- Damage caused by water impurities, debris, scale or poor water quality
- Any damage caused by failure to follow the product instructions
Delivery and Shipping
Delivery and Shipping
Orders are dispatched from our Sydney warehouse the next business day. A tracking number will be sent within 48 hours of placing your order.
Shipping times vary across Australia but typically range between 2–8 business days depending on your location.
If any items are on backorder, our team will contact you as soon as possible with an update.
EMEC VCO 07-06-VF Adjustable Wall Mounted Electronic Chemical Dosin...
EMEC VCO 07-06-VF Adjustable Wall Mounted Electronic Chemical Dosing Pump is backordered and will ship as soon as it is back in stock.
Specifications
Specifications
-
Model Code
-
Flow Range
-
Dosing Ratio
-
Pressure Range
-
Seal Type
-
pH Range
-
Connection Size
-
Body Material
-
Applications
Description
Description
Metering pump, wall mount, 6 l/hr @ 7 bar, PVDF pump head for chemical dosing, fixed stroke length, adjustable 10–100% speed with divider, includes installation kit
The EMEC VCO 07-06-VF is a reliable and compact electronic dosing pump from the V Series, designed for precise and consistent chemical injection in water treatment and industrial applications. It is ideal for systems requiring controlled dosing at moderate flow rates and pressure.
As part of the EMEC V Series, this model operates as a constant dosing pump with adjustable output, allowing operators to regulate dosing via manual control for consistent chemical delivery.
The pump is equipped with a PVDF pump head, offering strong resistance to a wide range of chemicals, making it suitable for aggressive dosing environments. The VF seal configuration (typically FKM/Viton) ensures compatibility with acidic chemicals and solvents, enhancing durability and operational safety.
Built with a high-strength PTFE diaphragm, the VCO 07-06-VF ensures long service life, minimal maintenance, and reliable dosing performance. Its wall-mounted design allows for easy installation and seamless integration into dosing systems.
Key Features
- Adjustable dosing control for precise chemical injection
- Constant dosing operation (manual control)
- PVDF pump head for high chemical resistance
- VF (FKM/Viton) seals suitable for acidic and solvent-based chemicals
- High-strength PTFE diaphragm for durability
- Compact wall-mounted design
- Reliable solenoid-driven dosing technology
- Manual or automatic venting options available
Applications
- Water treatment & disinfection
- Acid dosing systems
- Industrial chemical dosing
- Cooling towers
- Agriculture & fertigation
- Swimming pools & sanitation
Technical Specifications
- Model: VCO 07-06-VF
- Max Flow Rate: 6 L/hr
- Max Pressure: 7 Bar
- Pump Type: Solenoid-driven electronic dosing pump
- Control Type: Constant dosing (manual adjustable)
- Pump Head Material: PVDF
- Seal Material: FKM / Viton (VF)
- Diaphragm: PTFE
- Mounting: Wall mounted
- Venting: Manual / Optional self-venting
- Power Supply: 230V AC
- Protection Rating: IP65
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
EMEC VCO Series Electronic Chemical Dosing Pumps

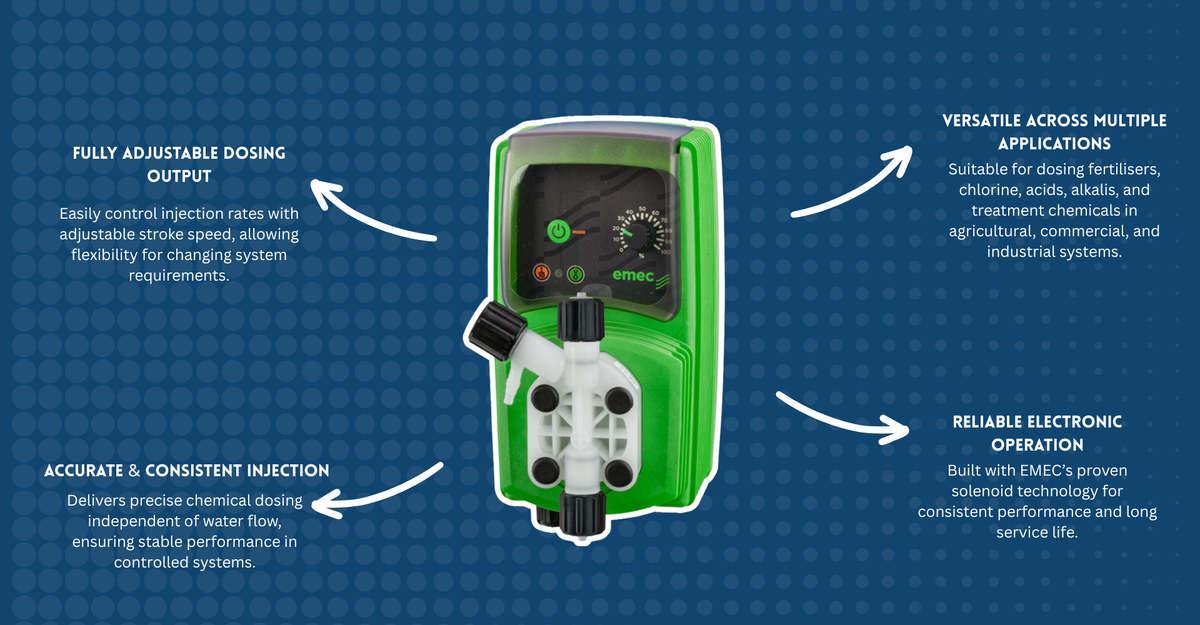

The EMEC VCO Series is a range of electronic solenoid-driven dosing pumps with fully adjustable output control, designed for precise and flexible chemical injection across a wide range of applications. Unlike fixed-output models, the VCO allows users to adjust dosing via stroke speed, making it ideal for systems where chemical demand varies.
The VCO Series is commonly used in water treatment, irrigation dosing, industrial processes, pools, and sanitation systems where accurate and adaptable dosing is required. With robust construction, reliable performance, and simple operation, the VCO range provides a versatile solution for low to medium flow dosing applications.
Compare the VCO Series Range
Compare the full EMEC VCO range to find the right dosing pump for your required flow rate, dosing ratio, application, and chemical compatibility.
| Facet | |||||
|---|---|---|---|---|---|
| By | |||||
| By | EMEC | EMEC | EMEC | EMEC | EMEC |
| Model Code | |||||
| Model Code | |||||
| Price | |||||
| Price |
Regular price
$1,055.00 AUD
Unit price
|
Regular price
$1,055.00 AUD
Unit price
|
Regular price
$785.00 AUD
Unit price
|
Regular price
$785.00 AUD
Unit price
|
Regular price
$785.00 AUD
Unit price
|
| Flow Range | |||||
| Flow Range | |||||
| Dosing Ratio | |||||
| Dosing Ratio | |||||
| Pressure Range | |||||
| Pressure Range | |||||
| Seal Type | |||||
| Seal Type | |||||
| pH Range | |||||
| pH Range | |||||
| Connection Size | |||||
| Connection Size | |||||
| Body Material | |||||
| Body Material | |||||
How an EMEC Solenoid Pump Works
An EMEC solenoid dosing pump works by using an electromagnetic coil (solenoid) to drive a piston or diaphragm back and forth in rapid strokes.
When the solenoid is energised, it pulls the diaphragm inward, creating suction that draws chemical into the pump head through an inlet check valve. When the coil de-energises, a spring pushes the diaphragm outward, forcing the chemical through an outlet check valve and into the dosing line.
The dosing rate is controlled by adjusting the stroke frequency and/or stroke length, allowing precise and consistent chemical injection regardless of changes in water flow or pressure.
